This catch can was designed with one thing in mind, strip the oil from the air the motor is spitting out and return it back to the oil pan where it belongs. Our unique 3 stage baffling system does this job extremely well. Unlike most catch cans on the market, we designed this to be BIG, air volume is key is keeping the oil out of the air. This can features a dual chamber design to keep the air flow separate from each other.
These cans were designed as a "bolt in" for the 2zz swapped MRS, due to the camshaft lubrication design, there is a extreme amount of oil in the upper end of these motors. One of the pictures is of a customer who spent one day at the track (20 laps) and then drained his catch can just to see how much oil is being pushed out, needless to say they were shocked. This is why we have a dual drain back system, keeping oil in your pan where it belongs!
We keep the factory breather port of the valve cover returning to the intake via a -10 hose (you'll need to modify your intake tube or have us fabricate you one) The PCV chamber now vents into the can and is vented to atmosphere. We also include two HPS Silicone caps for the throttle body. This is designed to be used in off-road use only, as well as paired with a standalone ECU that runs speed density fuel tuning.
Our standard configuration is below, but we can modify the catch can to whatever size fittings you'd like! Our standard drain configuration is setup for the moroso oil pan, which has a 1/2NPT Fitting, please let us know if you are NOT using this pan as you will require different length lines and a different fitting arrangement. All fittings/hose/hose ends are for push lock hose, if you'd like something else please let us know. This clears the TRD Strut bar, and most other aftermarket bars as well.
Hand TIG Welded 1/8" thick aluminum construction
Laser Cut and CNC Bent for perfect fit and finish every time
Separated chambers internally
Dual -8 Inlet
Dual -4 Drain Ports
Single -10 Outlet and 1" Breather Filter Outlet
All Mounting Hardware Included

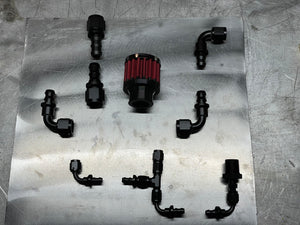

All hose ends, hose, and fittings are included
Caps for throttle body/intake manifold barbs
100% Made in USA - OFF ROAD USE ONLY
